Earthquakes have always been difficult to study because they happen suddenly and often deep underground. Scientists rely on seismometers placed on the surface to record ground motion, but these instruments are usually spaced far apart.
This limits the level of detail researchers can capture when a quake occurs. In recent years, however, a surprising technology has begun transforming earthquake monitoring. Ordinary fiber-optic cables—the same cables used to deliver high-speed internet—can now function as powerful seismic sensors. Using advanced laser-based technology, scientists are able to detect tiny vibrations along these cables and reconstruct how an earthquake unfolds beneath the Earth’s surface.
This development is especially important in earthquake-prone regions like California, where researchers constantly look for better ways to understand fault behavior. By turning existing telecom infrastructure into a dense network of sensors, scientists can observe earthquakes in far greater detail than before. Instead of relying on a few hundred traditional instruments, they can effectively use thousands of sensing points along a single cable. The result is a clearer picture of how seismic waves move through the ground and how earthquake ruptures spread along faults.
Table of Contents
Distributed Acoustic Sensing Technology in Earthquake Monitoring
Distributed Acoustic Sensing (DAS) technology has made it possible for fiber optic cables to capture detailed images of a California earthquake. In this method, laser pulses are sent through fiber-optic cables and the returning signals are analyzed. When the ground shakes, even slightly, the cable stretches or compresses. These tiny changes affect the reflected light traveling through the fiber. By analyzing the pattern of light reflections, scientists can determine where and how the ground moved.
Unlike traditional seismic instruments that monitor a single point, DAS technology allows researchers to observe vibrations along the entire length of a cable. Every few meters of the fiber becomes a virtual sensor. This means that a cable stretching several kilometers can produce thousands of data points, creating a much denser and more detailed earthquake monitoring system.
Detailed Images of a California Earthquake
| Aspect | Details |
|---|---|
| Technology Used | Distributed Acoustic Sensing (DAS) |
| Location of Study | Mendocino region, California |
| Cable Length Used | Approximately 15 km of fiber-optic telecom cable |
| Monitoring Method | Laser pulses sent through fiber cable |
| Sensor Density | Thousands of sensing points along the cable |
| Main Discovery | Captured highly detailed earthquake rupture patterns |
| Key Advantage | Uses existing telecom infrastructure |
| Scientific Benefit | Better understanding of earthquake behavior and fault movement |
How Fiber-Optic Cables Can Detect Earthquakes
Fiber-optic cables are normally used to transmit internet data as pulses of light. However, researchers discovered that these cables can also respond to small physical disturbances. The key to this detection system lies in the way light travels through the fiber.
During monitoring, a device called an interrogator sends rapid laser pulses into the cable. As the light travels through the fiber, a small portion of it reflects back due to microscopic imperfections within the material. Under normal conditions, these reflections remain stable. When the ground vibrates because of an earthquake, the cable experiences tiny stretches or compressions. These changes alter the pattern of reflected light.
Scientists analyze these variations to determine the intensity and location of ground motion. Because measurements can be taken every few meters along the cable, the system effectively creates thousands of virtual seismic sensors. This level of coverage is far greater than what traditional monitoring networks provide.
The California Earthquake Experiment
Researchers tested this technology during a seismic study near the Mendocino region of California. In this experiment, approximately 15 kilometers of existing telecom fiber-optic cable were used as part of the monitoring system. Instead of installing new seismic instruments, scientists simply connected their sensing equipment to the existing cable network.
When an earthquake occurred, the system recorded extremely detailed data about the rupture process. The fiber-optic sensors captured how the seismic waves moved through the region and how the fault rupture developed over time. Because the sensing points were spaced only a few meters apart, the data provided a much clearer view of the event compared to traditional seismic monitoring.
This high-resolution information allowed scientists to observe the exact path of the earthquake rupture and how quickly it traveled along the fault.
What Scientists Discovered
The data gathered from the fiber-optic monitoring system revealed several important insights about earthquake behavior. One of the most notable findings was the ability to track how the rupture initiated and propagated along the fault line.
Researchers could observe the moment the earthquake started, how it accelerated, and how it eventually slowed down. In some cases, the rupture appeared to move faster than the speed of sound through the surrounding rock. Such details are difficult to detect using conventional seismic networks because the sensors are spaced too far apart.
The dense measurement points provided by fiber-optic cables allowed scientists to see subtle changes in wave patterns and energy release. This type of information helps researchers better understand how earthquakes grow and spread.
Why This Technology Is Important
Traditional earthquake monitoring systems rely on seismometers that are installed individually across large areas. While these instruments are highly accurate, they are expensive to deploy and maintain. As a result, many regions have limited sensor coverage.
Fiber-optic sensing technology offers a practical solution to this problem. Because fiber cables are already installed in many places—especially in cities and along transportation routes—they can be converted into seismic monitoring tools without significant new infrastructure.
This approach provides several advantages:
- High sensor density: Thousands of sensing points along a single cable
- Lower costs: Utilizes existing telecommunications infrastructure
- Improved earthquake detection: Captures more detailed seismic data
- Expanded monitoring areas: Can be used in locations where seismometers are difficult to install
These benefits make fiber-optic monitoring a promising addition to global earthquake research networks.
Potential for Earthquake Early Warning Systems
One of the most exciting possibilities of this technology is its role in improving earthquake early warning systems. Early warning systems rely on detecting the first waves of an earthquake and sending alerts before the strongest shaking arrives.
With thousands of sensing points, fiber-optic cables can detect seismic activity much faster and more accurately than traditional systems alone. This could allow warning systems to provide earlier alerts to communities, giving people more time to take protective actions.
For example, early warnings could help stop trains, shut down industrial equipment, and alert emergency services before severe shaking begins. Even a few extra seconds of warning can significantly reduce damage and save lives.
Expanding Earthquake Monitoring to Offshore Areas
Another major advantage of fiber-optic sensing is its potential for monitoring offshore earthquakes. Many large earthquakes occur beneath the ocean, where installing traditional seismic instruments is extremely difficult and costly.

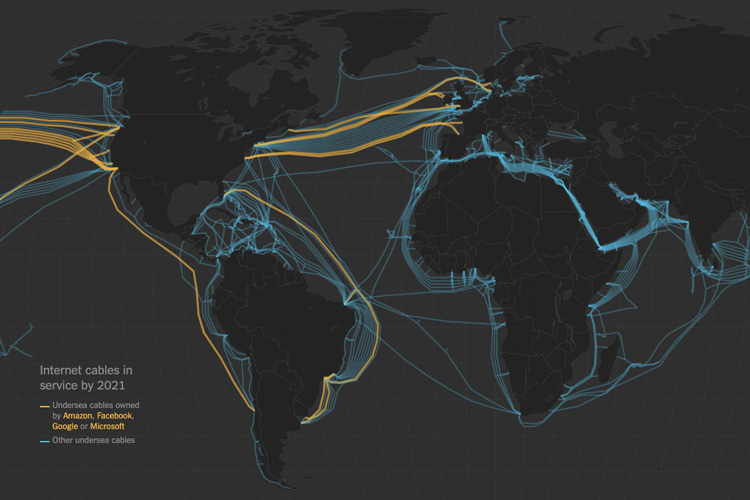

However, numerous fiber-optic communication cables already run across the ocean floor. Scientists believe these cables could be used to monitor underwater seismic activity using the same Distributed Acoustic Sensing technology.
This could significantly improve the ability to detect offshore earthquakes and potentially enhance tsunami warning systems as well.
The Future of Fiber-Optic Seismic Research
The successful use of fiber-optic cables in California demonstrates how existing technology can be adapted for scientific discovery. As more researchers adopt this approach, large sections of global telecommunications networks could become part of a vast earthquake monitoring system.
Future studies may combine fiber-optic data with traditional seismometer readings to create even more accurate models of earthquake behavior. This combined approach could improve hazard assessments and help scientists better understand the complex processes that drive earthquakes.
As telecommunications infrastructure continues to expand worldwide, the potential for fiber-optic sensing will also grow. What was once simply an internet delivery system may soon become one of the most powerful tools in earthquake science.
Conclusion
The use of fiber-optic cables to monitor earthquakes represents a major advancement in seismic research. By applying Distributed Acoustic Sensing technology, scientists can transform ordinary telecom cables into thousands of sensitive vibration detectors. This allows researchers to capture highly detailed images of earthquake activity, revealing how ruptures start, spread, and evolve.
The California study showed that even a single stretch of fiber-optic cable can provide an incredibly dense network of sensors. This approach not only improves scientific understanding of earthquakes but also offers practical benefits such as better early warning systems and expanded monitoring coverage.
As research continues, fiber-optic sensing could play a key role in building safer communities and advancing our understanding of one of nature’s most powerful forces.
